Small Tactical UAS

Innovative solutions ready to tackle large challenges from above

Small Tactical UAS

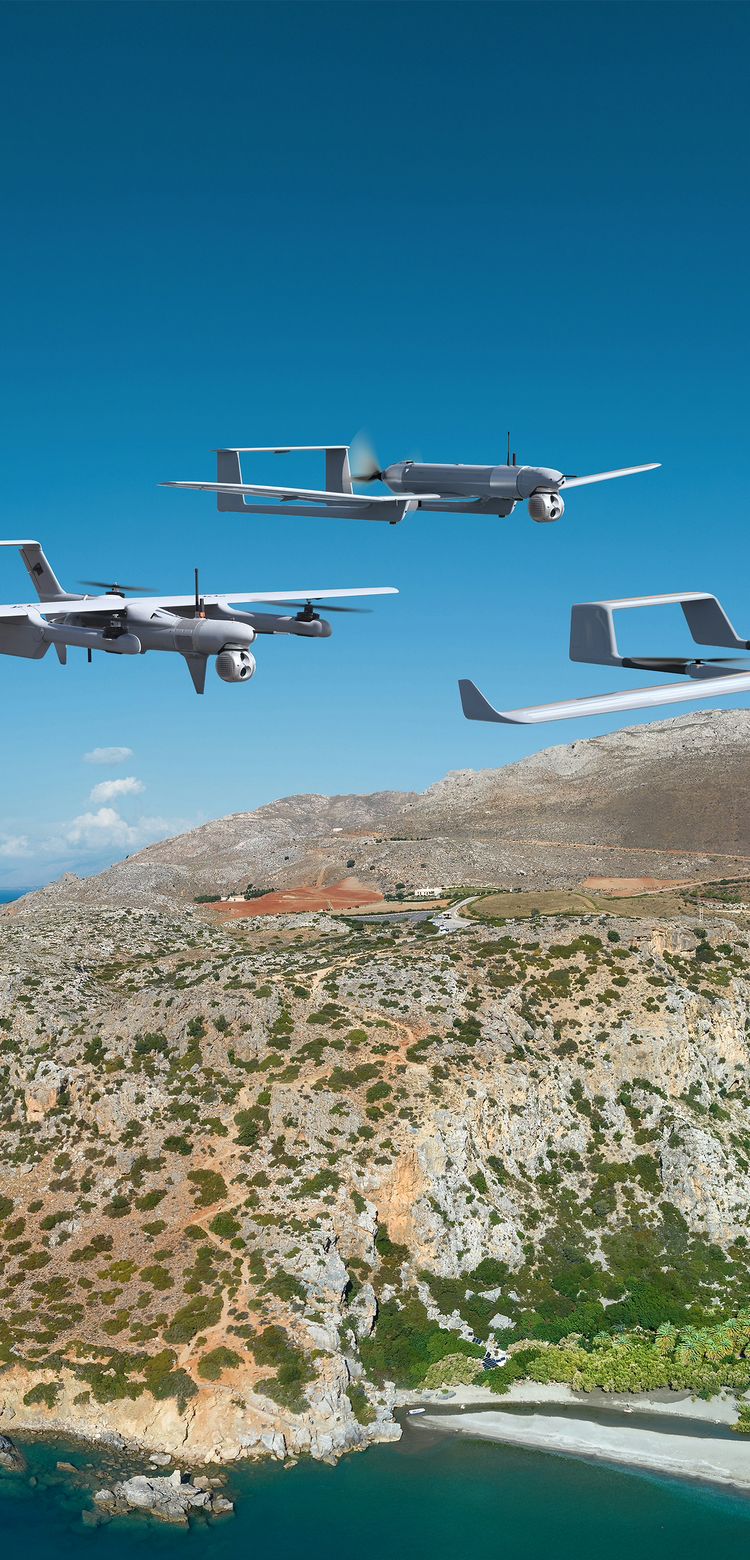

Survey Copter light tactical UAS

Surveillance and security

Survey Copter, an Airbus subsidiary since 2011, has more than 28 years of experience in the design, manufacture and support of small tactical unmanned aerial systems (UAS). Our UAS solutions are tailored to meet the requirements of military, institutional and civil missions, including surveillance, infrastructure inspection and security.

Survey Copter continually innovates to stay ahead of market needs, ensuring our systems are safe, reliable and certified. In addition to delivering state-of-the-art UAS, we provide comprehensive support, from training and maintenance to turnkey services, ensuring maximum system availability.

With a strong foothold in the military and security sectors, we are expanding our expertise and presence into civil and institutional markets.

Download Datasheet

Aliaca line

Product portfolio

Maritime at heart, global in mind

Aliaca is perfectly adapted to perform Intelligence, Surveillance and Reconnaissance (ISR), protection or surveillance missions in land, coastal or maritime environments. With more than ten years of maritime experience, Aliaca has become a key asset in ensuring global security and protection of our seas in an ever-changing maritime environment. Aliaca is the result of 10 years of R&D investment and on-board experimentation.

The light tactical maritime UAS enables navies around the world to efficiently control, program and manoeuvre tactical missions to precise locations in support of manned assets. In 2020, the French Defence Procurement Agency (DGA) signed a contract to supply Aliaca systems to the French Navy (Marine nationale), along with associated training and in-service maintenance. The system is currently deployed worldwide to support the daily missions of the Marine nationale.



MISE EN OEUVRE DRONE CDT BIROT



Aliaca is a robust imagery tool that enhances ISR capabilities, supporting decision making and operational responsiveness. Aliaca can easily respond to missions in challenging environments through catapult deployment by only two operators in less than 15 minutes.

The system is recovered by a proven, safe, intelligent and automatic net recovery system integrated on the ship or on a trailer for land operations. The net recovery system has a small logistical footprint, making it ideal for use on existing and future naval vessels, regardless of the size and availability of a helipad. The Aliaca range offers two configurations: an electric configuration (Aliaca Evo) and a thermal configuration (Aliaca ER).

Electrically powered, the Aliaca Evo can carry out missions within a range of 50 km (27 NM) and with an endurance of three hours in complete visual and acoustic discretion. The system is equipped with the latest GX5 EO/IR (Electro-Optical/Infra-Red) payload, a gyro-stabilised turret providing operators with 360⁰ panoramic coverage and high quality imagery, and an Automatic Identification System (AIS) sensor. As a result, the Aliaca can effectively carry out missions requiring data collection on a fixed or moving target, day or night.

The Aliaca ER (Extended Range) is a configuration offering a range of 80 km/43 NM and double endurance - six hours - thanks to a new thermal engine (compatible with JET A1, JP5, JP8). In addition to the EO/IR GX5 payload and AIS, the Aliaca ER also integrates a transponder (ADS-B out) and geocaching.

Aliaca Family Technical Specifications

Aliaca Evo

Propulsion
Electric
Endurance
3 hours
Range
27 NM / 50 km
Payload capacity
1.5 kg
Wing Span
3.6 m
MTOW
16 kg
Max ceiling
3,000 m
Deployment
15 minutes
Temperature control
-10⁰C to +50⁰C

Aliaca ER

Propulsion
Thermal
Endurance
3 hours
Range
80km / 43 NM
Payload capacity
1.5 kg
Transponder
ADS-B out
Additional safety function
Geo-caging
Wing Span
3.6m
MTOW
16 kg
Max ceiling
3,000 m
Deployment
15 minutes
Temperature control
-10⁰C to +50⁰C

Aliaca mission capabilities

  • Intelligence Surveillance and Reconnaissance (ISR)
  • Border surveillance
  • Coastal surveillance
  • Combating illegal activities at sea - illegal immigration, drug trafficking, illegal fishing, pollution
  • Search and Rescue


Capa-X

Product portfolio

Capa-X is a flexible drone system that can be easily adapted to a wide range of missions, configurations, airworthiness and sovereignty requirements.

The structure of the drone itself, as well as its components, can be modified to adapt to all types of terrain and missions. It can take off from a ship as a VTOL (Vertical Take-Off and Landing) or HTOL (Horizontal Take-Off and Landing), depending on the customer's requirements. The possibility of different wing configurations also plays a key role in adapting cruising speeds or increasing flight autonomy.

This concept offers maximum flexibility and adaptability for armies, navies, air forces, special forces and any parapublic or civil entity.

Why choose small tactical UAS?

A global and comprehensive training package suitable for the operation and maintenance of the small tactical portfolio is provided by in-house experts.

Training capabilities

Adaptability:

  • With a limited footprint, our Small Tactical portfolio can be adapted to the ever-changing customer environment, such as on a ship without a helicopter platform

Mobility in the field:

  • Ease of deployment and fully automated recovery
  • Agile preparation, can be pre-flight checked and deployed within 15 minutes
  • Easy transport thanks to the small footprint of our systems

Accuracy:

  • Operation in challenging environments, programmed and manoeuvred with accuracy and greater range of movement compared to manned assets to precise locations

Support to manned assets:

  • Reduces workload and complements manned assets

Reliable, Safe, Certified:

  • Proven capabilities, adapted to perform missions in all conditions and environments
  • Quality Management System ISO 9001 certified since 2014
  • EN 9100 quality certification for the aeronautics industry since 2023
  • Experience in the certification of our systems

Ground Control

The Small Tactical UAS common ground station is compact and lightweight. With a small logistical footprint it is flexible for missions on the go, and can be easily moved to where it is needed. The GCS consists of an Aircraft Mission Station (AMS) and a Payload Display Unit (PDS), where two operators can prepare and track missions on the AMS and receive real-time data and imagery on the PMS.

The one-stop shop

More than just drone systems, you can benefit from customised services ranging from training, support and MRO to full turnkey and operational offerings. Your one-stop shop for all your small tactical needs.

20170712_062822

More than just a drone manufacturer: a systems designer

Comprehensive services

Our Small Tactical UAS portfolio goes beyond offering an aircraft platform. The expertise in small tactical UAS solutions enables the development of all major components for small tactical UAS solutions.

We provide our customers with comprehensive services (system supply, parts, spares, maintenance and training of operators and maintenance technicians), as well as services to perform complete turnkey missions and support our customers in the deployment and operation of the systems.
