25 years of expertise in the battery industry

Thanks to more than 20 years of expertise with the Lithium-Ion technology, Airbus has developed its own battery products for Space applications since 2016. Equipped with COTS cells, fully qualified by Airbus for Space, they offer a competitive price while maintaining a high level of reliability. Their design is based on a modular approach in order to cope with specific mission requirements while minimizing the non-recurring costs and battery mass.

Airbus acts not only as design authority but also as manufacturing authority, with a dedicated Battery Assembly Line, equipped with automated machines improving quality, lead time and production capacity.

4 product lines are currently addressed with Airbus off the shelf batteries: GEO/MEO telecommunication and navigation systems; LEO optical and radar missions; LEO constellations and launchers.

Thanks to its successful in-orbit heritage, Airbus now stands as a key actor in the Space battery industry.

Contact us

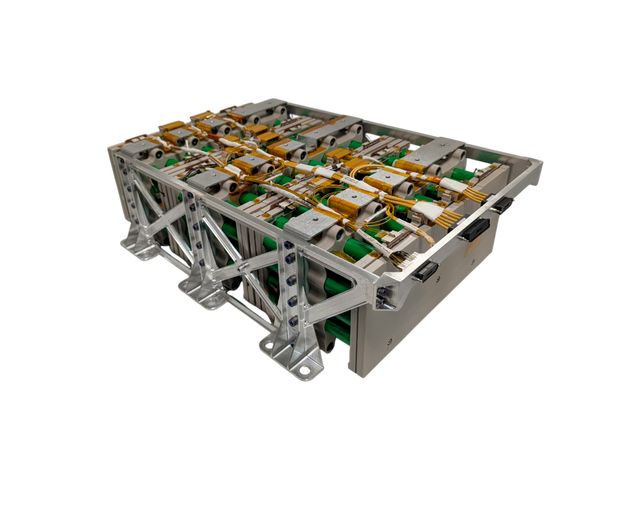

Schema of ASTRO-BATT

ASTRO-BATT: a battery product line for LEO Optical/Radar missions

ASTRO-BATT is a Space Equipment product line specifically developed to address Low-Earth Orbit (LEO) missions. It complies with the ECSS standards.

With its ingenious design, the module can be provided in 3 different voltage configurations : 30, 50 and 100V, with the same mechanical design, and installed internally or externally to the spacecraft.

The module is equipped with COTS Lithium-ion cells, fully qualified by Airbus for Space applications and with flight heritage, that enables Airbus to propose a competitive price.

ASTRO-BATT was successfully qualified mid-2024 and first FM unit’s production is on-going.

Download Datasheet
ESA FORUM satellite - Copyright ESA

ESA’s FORUM satellite

Airbus ASTRO-BATT battery product in its 30V configuration has been selected for this mission, proof of the confidence granted by major space stakeholders.

The battery is planned to be delivered in Q1 2025. FORUM is scheduled to be launched in 2027 on a Vega-C rocket from Europe's Spaceport in Kourou, French Guiana.

COSMO-BATT, for GEO, MEO Telecom & Navigation satellites

COSMO-BATT is a Space Equipment product line specifically developed for Telecom and Navigation satellites.

The design is based on a modular approach in order to cope with specific mission requirements while minimizing the non-recurring costs and battery mass. A single module’s energy ranges from 500 to 3000 Wh.

Equipped with COTS Lithium-ion cells, fully qualified by Airbus for Space applications, COSMO-BATT offers a disruptive price in comparison to existing products in an equivalent configuration, while maintaining a high level of reliability.

The modules are delivered by Airbus in a battery pack. Several modules are connected in series in order to reach the targeted voltage and mounted on a spacecraft panel. The battery pack also includes interconnection elements, harness as well as necessary management and safety equipment.



Download Datasheet

COSMO-BATT-S

  • From 500 to 1000 Wh
  • On board on Galileo satellites

COSMO-BATT-M

  • From 1100 to 2100 Wh
  • On board on OneSat satellites

COSMO-BATT-L

  • From 2200 to 3000 Wh
  • On board on E3000-NEO satellites

A strong flight heritage

On board E3000-NEO, OneSat and Galileo platforms, more than 300 units have been successfully manufactured on Airbus Battery Assembly Line and more than 100 modules are currently in flight.

STELLAR-BATT, a battery product line for LEO Constellations

STELLAR-BATT is a Space Equipment product line specifically developed to address Low-Earth Orbit (LEO) constellations. This innovative product line comprises two distinct modules, which can be utilized either independently or in series/parallel configurations.

To meet the evolving demands of the space industry and revolutionize the battery market, the STELLAR-BATT module incorporates EEE automotive Commercial Off-The-Shelf (COTS) components and COTS Lithium-ion cells. These components have undergone rigorous qualification by Airbus for space applications and boast a proven flight heritage.


Download Datasheet



STELLAR-BATT-S

STELLAR-BATT-S is a 30V battery offering around 1700 Wh, designed for an external mounting configuration, thermally insulated from the spacecraft. The module embeds its own radiator.


STELLAR-BATT-L

STELLAR-BATT-L is a 30V battery offering from 900 to 3600 Wh thanks to a modular design. Unit thermal management is ensured by a direct contact between unit baseplate and spacecraft panel.


A strong flight heritage

More than 800 STELLAR-BATT battery modules have been manufactured on the Battery Assembly Line. This product was selected in the frame of the OneWeb satellites constellation, with more than 630 satellites in orbits since the first launch in February 2019, ending in an impressive 2000 years cumulated lifetime.



LAUNCHER-BATT, a battery product line for launchers

LAUNCHER-BATT is a Space Equipment product line specifically developed to address the launchers market.

It offers the best compromise between mechanical performance, safety and reliability, all necessary for the success of launchers missions. The batteries can be used for launcher’s units power supply or to power source the pyrotechnics orders for example. Each module can be used in standalone or in series/parallel with other modules.

This module is based on a simple design, using COTS Lithium-ion cells, fully qualified by Airbus for launcher applications, leading to a very competitive price proposal. Each module embeds fuses, in order to ensure safety under all conditions.



Download Datasheet



LAUNCHER-BATT-S

LAUNCHER-BATT-S is a battery offering around 260 Wh in a 30V configuration.

LAUNCHER-BATT-L

LAUNCHER-BATT-L is a battery offering around 1600 Wh in a 60V configuration.

Selected for Ariane 6

LAUNCHER-BATT was selected by the European leader of space launchers : Ariane Group, for Ariane 6 launcher. To date, more than 150 modules have been successfully manufactured and tested on Airbus Battery Assembly Line in Toulouse (France).

First Ariane 6 launch happened in July 2024, embedding more than 30 battery modules.

A330 MRTT - A400M - Rafale

From space to defence

In addition to batteries for space applications, Airbus and its Research and Development teams have been working for several years on the development of
Li-ion batteries for the Defence sector, covering space, air and naval applications.

With its proven heritage and ability to provide solutions for harsh environments, Airbus is the ideal partner to design and engineer your power storage module.

Satellite orbiting the Earth

Customer support and services

Turnkey solutions

Thanks to its significant workforce, Airbus can implement the necessary customisations or even develop a new battery product within a short time frame (< 18 months), while complying with Aviation and Space standards.

In addition to its battery product, Airbus can provide several services such as:

  • Customer support in defining the battery to meet customer needs and in defining the electrical architecture of the system
  • Battery EGSE (for charging, maintenance, simulations or testing)
  • Customer support (testing activities, integration, in-flight support)

Discover more about power portfolio
